Windows XP: Your Definitive Lockdown Guide

Windows XP Professional and what you need to do to be secure. This is a start to finish article on the fundamentals of OS desktop security – Microsoft style



Lock it down - now!

This will look at the following items and how to lock them down step by step. This will enable your XP system to be lean, mean and ready to do battle with attackers of all types.

Verify that all disk partitions are formatted with NTFS

NTFS partitions offer access controls and protections that aren't available with the FAT, FAT32, or FAT32x file systems. Make sure that all partitions on your computer are formatted using NTFS. If necessary, use the Convert utility to non-destructively convert your FAT partitions to NTFS. Be careful! I have goofed this up myself so be careful and always make a backup of critical data, but that should go without saying!




Protect file shares

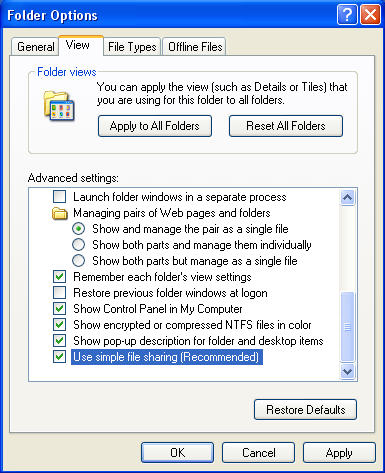

By default, Windows XP Professional systems that are not connected to a domain use a network access model called "Simple File Sharing," where all attempts to log on to the computer from across the network will be forced to use the Guest account. This means that network access through Server Message Block (SMB, used for file and print access), as well as Remote Procedure Call (RPC, used by most remote management tools and remote registry access) will only be available to the Guest account. Ok, this is lame and we should change this. To change it, go to: Start => Programs => Accessories => Windows Explorer and drop down the Tools menu and select ‘Folder Options’.

In the Simple File Sharing model, file shares can be created so that access from the network is read-only, or access from the network is able to read, create, change, and delete files. Simple File Sharing is intended for use on a home network and behind a firewall, such as the one provided by Windows XP. If you are connected to the Internet, and are not operating behind a firewall, you should remember that any file shares you create might be accessible to any user on the Internet.

My recommendation is that you DISABLE IT!

To disable Simple File Sharing

For more info on File Sharing with XP, you can visit article Q304040


Enable Internet Connection Firewall (ICF)

ICF provides protection for Windows XP computers that are directly connected to the Internet, or for the computers or devices connected to the Internet Connection Sharing host computer that is running ICF.

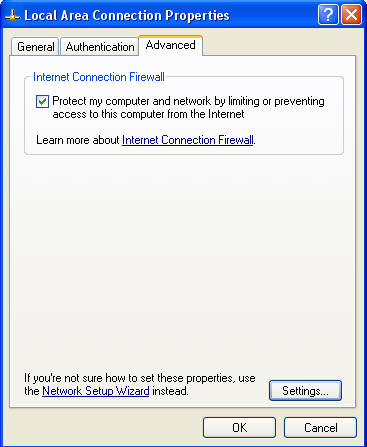

To enable ICF, right-click an Internet connection in Network Connections, click Properties, click the Advanced tab, and then select the appropriate check box.

I would suggest getting a real firewall product that is more robust then this, but if this is all you have, enable it!


Use software restriction policies

Software restriction policies provide administrators with a policy driven mechanism that identifies software running in their domain, and controls the ability of that software to run. Using a software restriction policy, an administrator can prevent unwanted programs from running; this includes viruses and Trojan horses, or other software that is known to cause conflicts when installed. Software restriction policies can be used on a standalone computer by configuring the local security policy. Software restriction policies also integrate with Group Policy and Active Directory.

Use account passwords

To protect users who do not password-protect their accounts, Windows XP Professional accounts without passwords can only be used to log on at the physical computer console. By default, accounts with blank passwords can no longer be used to log on to the computer remotely over the network, or for any other logon activity except at the main physical console logon screen.


Disable unnecessary services

After installing Windows XP, you should disable any network services not required for the computer. In particular, you should consider whether your computer needs any IIS Web services. By default, IIS is not installed as part of Windows XP and should only be installed if its services are specifically required. It is my recommendation that if you don’t need them, disable the following services ASAP:

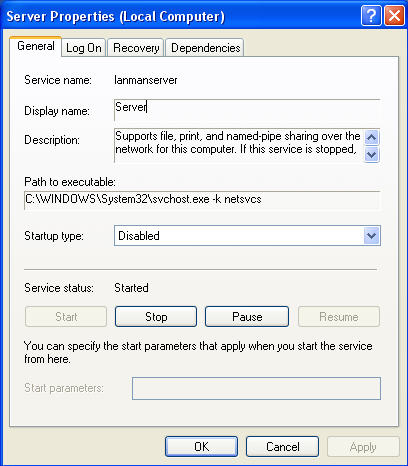

I also recommend that the server service and computer browser be eliminated if you are on a stand-alone machine connected to the Internet. There is no practical use for them and leave you exposed.




Disable or delete unnecessary accounts

You should review the list of active accounts (for both users and programs) on the system in the Computer Management snap-in. Disable any non-active accounts and delete any accounts which are no longer required.


Make sure the Guest account is disabled

This setting recommendation only applies to Windows XP Professional computers that belong to a domain, or to computers that do not use the Simple File Sharing model.

On Windows XP Professional systems that are not connected to a domain, users who attempt to log on from across the network will be forced to use the Guest account by default. This change is designed to prevent hackers attempting to access a system across the Internet from logging on by using a local Administrator account that has no password.


Set stronger password policies

To protect users who do not password-protect their accounts, Windows XP Professional accounts without passwords can only be used to log on at the physical computer console. By default, accounts with blank passwords can no longer be used to log on to the computer remotely over the network, or for any other logon activity except at the main physical console logon screen. Use the Local Security Policy snap-in to strengthen the system policies for password acceptance. Microsoft suggests that you make the following changes:

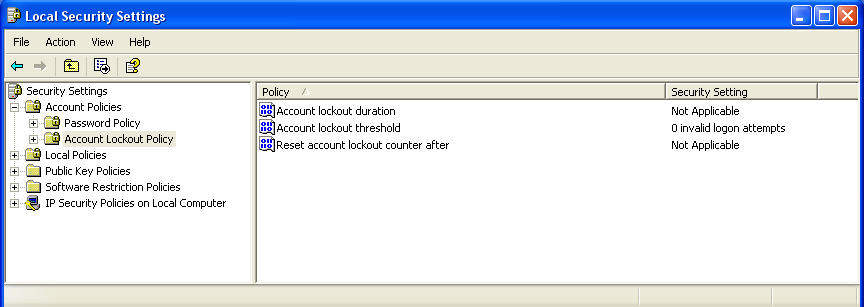

Set account lockout policy

Windows XP includes an account lockout feature that will disable an account after an administrator-specified number of logon failures.

Consider reasonable settings for your environment and think about how secure your environment needs to be. If its too much, then users will freak out.


Install anti-virus software and updates

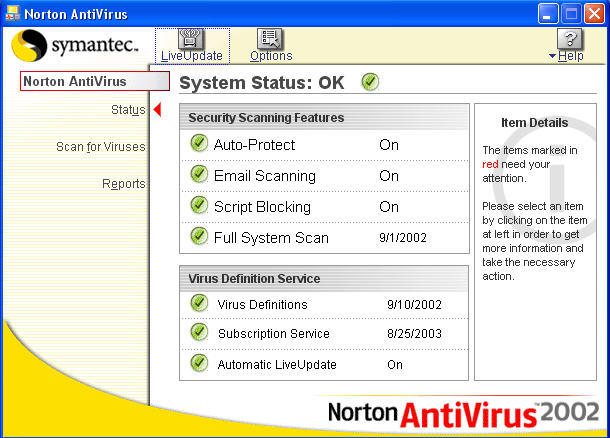

One of the most important things for protecting systems is to use anti-virus software, and ensure that it is kept up-to-date. All systems on the Internet, a corporate Intranet, or a home network should have anti-virus software installed.




Keep up-to-date on the latest security updates

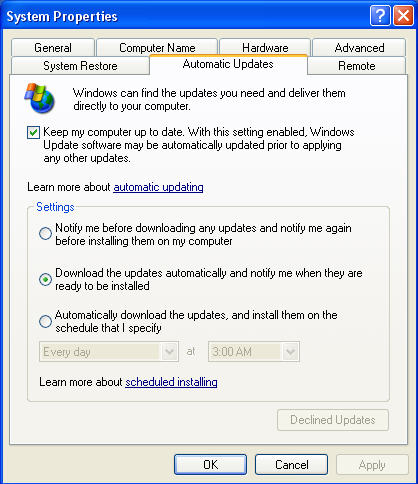

The Auto Update feature in Windows XP can automatically detect and download the latest security fixes from Microsoft. Auto Update can be configured to automatically download fixes in the background and then prompt the user to install them once the download is complete. To configure Auto Update, click System in Control Panel and select the Automatic Updates tab. Choose the first notification setting to download the updates automatically and receive notification when they are ready to be installed.




In Sum,

Now, you should be able to sleep easy at night knowing your XP system is at least in better security posture than it ever was… you must keep up on your updates though and make sure you virus definitions are also updated. If you do these few things, you will find your XP system way more secure than it ever was.
